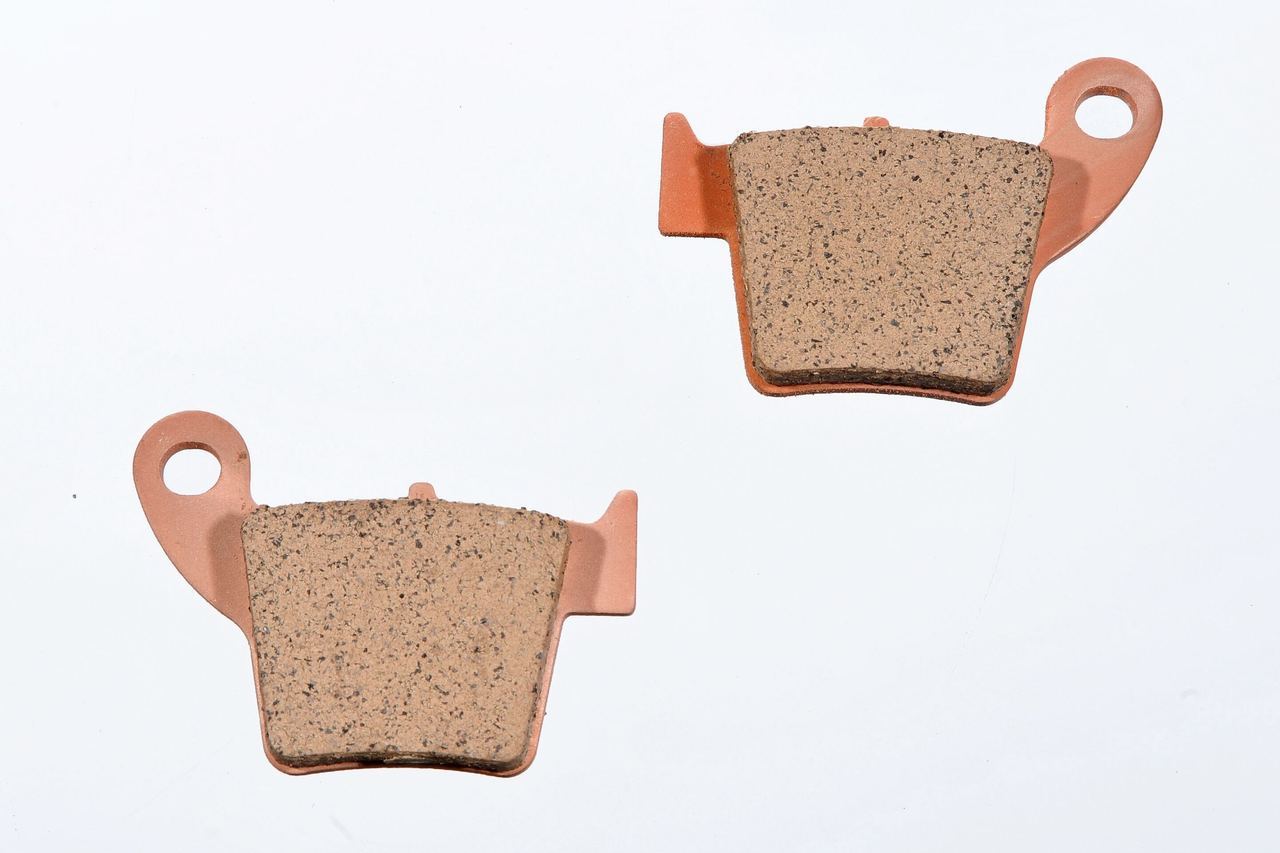

Goldfren K5 Racing pads - Model No 176 K5 - Alfer / Fantic / Honda

S3 Carbon Ceramic Brake Pads

Free Shipping Australia Wide!

Time to grab yourself a bargain!

We have a huge range of quality Goldfren Disk Brake Pads that we need to sell ASAP, so we are running them out the door at well below retail price! We only have limited stock, so what you see below is all we have so be quick!

Description

The K5 sintered compound is optimal for off-road dirt bikes and ATV. It is recommended for riders who demand great off-road stopping power and brake pad durability when riding on tough off-road terrains. The K5 series is designed for low abrasive interaction with the rotor, long life and self-cleaning capabilities necessary for off-road riding conditions. Friction materials contain metal-ceramic with a sophisticated bronze-graphite and full-metal mixture formulation with fine friction particles to achieve optimal friction properties.

Model Number

176 K5

Need to find the correct pad for your make / model / year bike?

1. Click here to view the Goldfren Application guide and scroll down to find your bike and pad number (normally 3 digits)
2. Either search for the 3 digit part number in the search bar at the top left of this page, or scroll through the listings in our store

Note: if you are unsure please contact us and we will search for you.

Fitment

ALFER
EVX 400 Electric 12 – 13 R
FANTIC
TR 125 CR Cross Competizione (2T) 13 R
TR 125 MR Motard Competizione (2T) 13 R
TZ 125 CS Caballero Cross (2T) 11 – 12 R
TZ 125 ES Regolarita Scuderia (2T) 11 – 12 R
TZ 125 SM Caballero Motard (2T) 11 – 13 R
TZ 170 E Regolarita Casa (125E/4T) 11 – 15 R
TZ 170 ER Caballero Regolarita 11 – 15 R
TZ 170 M Motard Casa (125SM/4T) 11 – 15 R
TZ 170 MR Motard Competizione
(125 MR 4T) 11 – 15 R
TX 180 E Regolarita Casa 50E (49cc/2T) 11 – 15 R
TX 180 ER Regolarita Competizione
50ER (49cc/2T) 11 – 15 R
TX 180 ES Regolarita Scuderia 50 ES
(49cc/2T) 11 – 15 R
TX 180 M Motard Casa (49cc/2T) 11 – 15 R
TZ 180 MR Motard Competizione
50 MR(49cc/2T) 11 – 15 R
TZ 200 ER Caballero Regolarita
Competizione (200ER/4T) 11 – 15 R
TZ 200 MR Motard (200 SMR/4T) 11 – 15 R
TZ 250 ES Regolarita (2T) 11 – 12 R

TF 250 ES Regolarita (4T) 11 – 13 R
TR 250 ES Enduro Six Days (2T) 13 R
TR 300 ES Enduro Six Days (2T) 13 R
TZ 300 ES Regolarita Scuderia 11 – 12 R
HONDA
CR 125 R2/R3/R4/R5/R6/R7 02 – 07 R
CRF 150 R Small wheel (FR 17“/
RR 14“) 07 – 14 R
CRF 150 RB Big wheel (FR 19“/RR 16“) 07 – 16 R
CR 250 R2/R3/R4/R5/R6/R7 02 – 07 R
CRF 250 R4/R5/R6/R7/R8/R9/RA/RB/
RC/RD/RE/RF/RG 04 – 16 R
CRF 250 RE (Limited Road Use) 16 R
CRF 250 RF/RG (260 mm F/Disc) 15 – 16 R
CRF 250 X4/X5/X6/X7/X8/X9/XB/XC/
XD/XF/XG 04 – 16 R
CRF 250 XRL (Road legal) 14 – 16 R
CRF 450 R2-R9/RA/RB/RC/RD/RE/
RF/RG 02 – 16 R
CRF 450 RE (Limited Road Use) 16 R
CRF 450 RF/RG (260 mm F/Disc) 15 – 16 R
CRF 450 X5/X6/X7/X8/X9/XB/XC/
XD/XF/XG 05 – 16 R
CRF 450 XRL (Road legal) 14 – 16 R
HONDA-DALL‘ARA
XR 250 SM Caballero Motard (2T) 04 R
XR 400 /440 R 04 R
XR 400 /440 SM 04 R
HONDA-HM (ITALY)
CR 50 Derapage RR From
ZEN50XACMA7700385 07 – 09 R
CRE 50 Baja RR From ZEN0XACEA77 07 – 09 R
CRE 50 Six Competition 07 – 08 R
CRE 50 Six Competition 10 – 12 R
CRM 50 Derapage Competition 07 – 08 R
CRM 50 Derapage Competition 09 R
CRE 125 R Supermotard 02 – 03 R
CRE 125 R Enduro 04 – 06 R
CR 125 Motard 04 R
CRE 125 R Enduro 02 – 03 R
CRE 125 Six Competition 2T 11 R
CRE 125 Baja RR 2T 11 R
CRE-F 125 X 09 R
CRE-F 125 X Six 4T 10 – 11 R
CRM 125 R Supermoto 07 R
CRM-F 125 X 09 R
CRM 125 Derapage Competition 2T 11 R
CRM-F 125 X Derapage Competition 4T 10 – 11 R
CRM 125 Derapage RR 2T 11 R
CR 150 R/R2 07 – 09 R
CR 230 Easy Trail 04 R
CRF 230 Easy Enduro 04 R
CRF 230 Easy Motard 04 R
CRE 250 02 R
CRE 250 R Supermotard 02 – 03 R
CRE 250 R Enduro 02 – 06 R
CRE 250 X R
CRE-F 250 X 08 – 11 R
CRM 250 X Supermoto 07 R
CR 250 R Moto 04 R
CRE 250 F Enduro 04 R
CRF 250 Motard 04 R
CRF 250 F 04 – 08 R
CRF 250 R 08 – 09 R
CRE-F 290 X 07 R
CRE-F 300 X 08 – 09 R
CRE-F 450 Enduro 02 – 06 R
CRE-F 450 02 R
CRF 450 Motard 04 R
CRE-F 450 Supermoto 02 – 03 R
CRE 450 X R
CRF 450 R 04 – 08 R
CRM-F 450 R/X Supermoto 07 R
CRE-F 490 X 07 R
CRM-F 490 X Supermoto 07 R
CRE-F 500 X 08 – 09 R
CRM-F 500 X 11 R
MEGELLI
125 M 08 – 10 R
PUZEY
MTD 300 (4T/4V) Motard model 11 – 12 R
MX 300 (4T/4V) Enduro model 11 – 12 R

Features

• High static friction coefficient
• Good abrasive resistance
• Thermal stability up to 500°C, and even up to 750°C over a short term
• Self cleaning capability
• Low abrasive interaction with the brake rotor material
• Three(3) times +/- longer operational life compared to organic and Kevlar composite materials

Range of Application

• Developed for off-road because it features long life on heavy-duty terrains
• On off-road bikes and ATV
• Can be used on both front and rear brakes. Hot and dry weather, use only on rear brake
• Could be used on the rear brake of road racing motorcycles

Materiel Operating Parameters

• Specific pressure: P < 2.0 Mpa
• Sliding velocity: V < 20 m.s-1
• Constant maximum temp: 500°C
• Short time maximum temp.: 750°C
• Counter-surfaces: steel disks

General Characteristics about Goldfren Brake Pads

• All the GOLDfren brake pads are made with sintered metal-ceramic and ceramic-carbon friction materials
• Sintered brake pads offer no brake fade when operating at high temperatures and in wet conditions
• Sintered brake pads provide superior stopping power and longer life compared to other brake pad types such as: carbon organic, organic, or semi-metallic organic
• Sintered brake pads are made by fusing together metallic particles under high temperatures and pressure using a pressed powdered-metal technology
• GOLDfren is a pioneer in sintering, using advanced and progressive powder metallurgy methods
• Designed for both wet and dry applications
• Sintered brake pads deliver exceptional braking performance and durability under the most demanding conditions
• All the materials used are lead and asbestos free
• GOLDfren® is the brand for high-end quality aftermarket performance disc brakes
• Compound series  available are: AD, S3, K1, K5, K5-LX, S33, GP5, GP6, PG7
• Application of each compound is based on our brake pad application chart or the rider's preference and riding style
• The sintered friction material is soldered to the copper lined steel backing plate, hence, separation (which can happen with organic pads) is virtually impossible

Notes

• Replacement of brake pads should be done in dry clean conditions and preferably by a professionally qualified person. If the friction material comes in contact with oil or brake fluid and the liquid soaks into the pores of the friction material, a catastrophic decrease in friction coefficient (braking performance) could occur
• Please beware that sintered brake pads require a bed-in period after installation. Allow some extra braking distance during the bed-in period. For more information on bedding your brake pads see our FAQs page #6
• Braking performance is significantly influenced by the quality of the braking surface of the Disc rotor; also by the age and quality of the brake fluid, and by the correct choice of complementary type of brake pad
• To achieve the perfect brake effect, we recommend using GOLDfren brake pads in conjunction with GOLDfren rotors and brake lines because of its excellent quality common friction properties
• Brake with the products developed by GOLDfren®

Please note: You will need to order 1 set per caliper for Twin Disk front end. If you have twin rotors you will need to order 2 X sets of pads.

Please note: we only have limited stock and it is all listed on this site.

Please note: Product photos may not represent the exact shape of the pad listed - please check the technical drawing above for exact pad shape.

Bedding-in: this is a particularly important procedure for all compounds. The pads are bedded in by applying the brakes lightly several times and ending with a firm bite, leaving a pause between one squeeze and the next. This will produce the correct heating and cooling cycle needed to prepare the system. The duration of the bedding-in period depends on the type of compound: generally longer for organic compounds than for sintered.
